CR GOLD 20-45

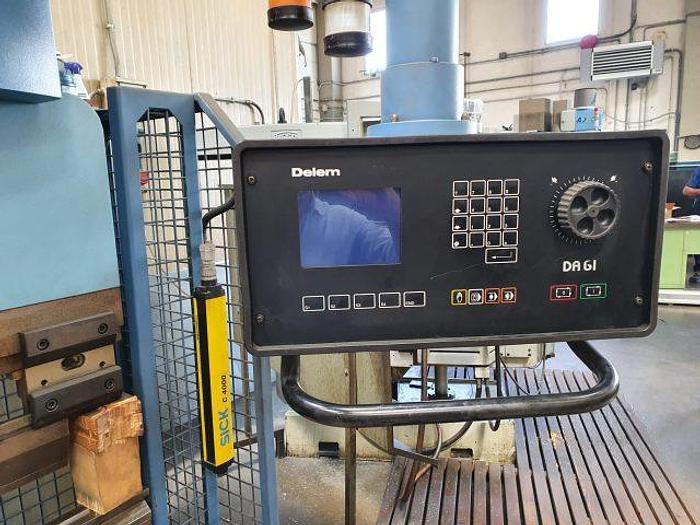

Synchronized press brake Year 2001 Force T 45 Control DELEM DA 65 Useful bending length mm 2200 Distance between uprights mm 1550 Depth of recess mm 350 Max distance between table and ram Mm 380 Max ram stroke Mm 180 Approach speed Mm/s 200 Working speed Mm/s 10 Return speed Mm/s 180 X register stroke Mm 500 Register stroke R1 Mm 150 Main motor power Kw 7.5 Max working pressure BAR 230 Pump flow rate l/min 24 Cylinder bore Mm 130 Max machine absorption A 39.5 Tank capacity Liters 75 Machine length Mm 4200 Machine Height Mm 2550 Machine Width Mm 1550 Voltage V 400 Frequency Hz 50 Phases N 3 Weight Kg 4300 Controlled axes No. 4 Year 2001
